Description

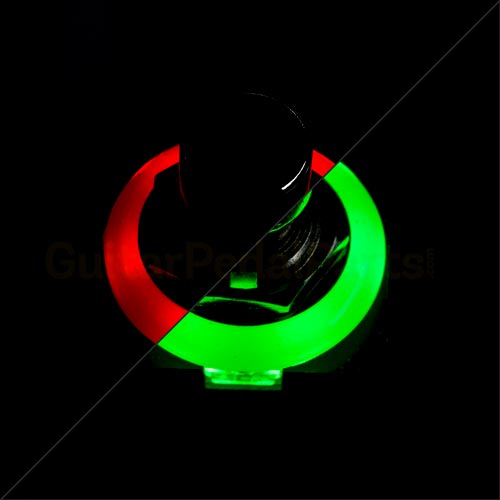

pedale led 3PDT Foot Switch with LED Ring, Red/Green – Guitar Pedal PartsDownload Wiring Diagram (PDF) Wiring boards are available here: https: guitarpedalparts. com product wiring board for 3pdt with bi color led Introducing new 3PDT foot switches with integrated LED rings! Our same quality switches with 6 built in LEDs to make your pedal builds shine. LEDs built into the switch cause the plastic washer to glow bright Red Green Bi Color LEDs for on off indication Latching switch (standard for true bypass switching) Solder
Wiring boards are available here: https://guitarpedalparts.com/product/wiring-board-for-3pdt-with-bi-color-led/
Introducing new 3PDT foot switches with integrated LED rings! Our same quality switches with 6 built in LEDs to make your pedal builds shine.
- LEDs built into the switch cause the plastic washer to glow bright
- Red/Green Bi-Color LEDs for on/off indication
- Latching switch (standard for true bypass switching)
- Solder lugs
- High temperature ring epoxy
- High temperature plastic casing
- High quality internal components
- Blue color
- Includes one nuts, one metal washer, one plastic glow washer
These switches require an 11/16" mounting hole for the plastic washer. The positive/negative connections for the LEDs are marked on the top of the switch on the circuit board. For a 9V power supply, a 470ohm or greater resistor should be used or the LEDs could be damaged.
Note: Bi-color version has 3 pins for LED ring (not pictured).
